led wall washer 36w

led wall washer 36w

Wall washer lights apply to buildings, bridges, parks, ancient buildings, flood lighting etc.
  • Lamp type :

    Wall wash lights
  • Lamp model :

    CS-WS4530
  • Chip Brand :

    CREE/Epistar
  • Dimensions :

    W45xH30.5xL1000mm
  • Material :

    Aluminum Body+tempered Glass Cover
  • IP rating :

    IP65
  • Warranty :

    3 years
  • Product Details
  • Packing&Size

 Description

· New heat releasing structure, a unique heat releasing technology.
· Revolving bracket,it is convenient to adjust the projecting angles. Can be customed made the bracket according to your requirement.
· Use Cree/Osram LED chip, with the professional optical lens, good quality, uniform color, higher brightness.
· High strength T6063 aluminum housing, tempered glasses. Akzo Nobel powder coating surface, outdoor grade, anti-UV.
· A variety of color temperature choose (1700K-6500K).
· RGBW 4 in 1 color changing, narrow beam angle projecting.


◆ Specifications

· Chip Brand: Epistar, CREE, OSRAM
· Rated power: 24W/36W
· Material: aluminum housing+ tempered glass cover
· Light source: 1W high power led
· LED QTY: 24pcs/36pcs
· Rated voltageDC24V
· Beam angle10x60°,,15°,25°,30°,45°,60°,90°(Various lenses)
· Light colorSingle Color
· Working temperature-30°C~55°C
· IP ratingIP65
· Life span30000hrs
· Warranty3 years
· DimensionsW45*H30.5*L1000mm
· Lamp body color: Customized
· Single brightness80-90Lm / W
· Electrical classClass III(24V)
· Rotation angle160°

· Control methodN/A


 Applications

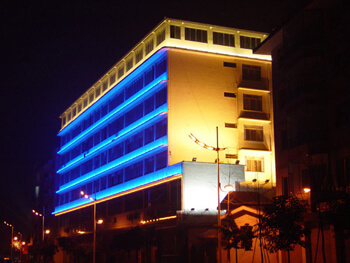

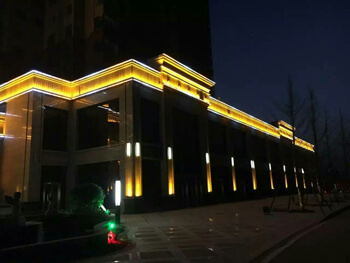

LED wall washer lights apply to buildings, bridges, parks, ancient buildings, flood lighting etc..




 Order Product Code

No.

ITEM NO

LED QTY

LightColor

Lumens

Voltage

Wattage

Control

Dimension

Remarks

1

CS-WS4530-24W

24pcs 1W

Single color

≤2040LM

DC24V

24W

N/A

W45x30.5xL1000mm



2

CS-WS4530-36W

36pcs 1W

Single color

≤3060LM

DC24V

36W

N/A

W45x30.5xL1000mm
