Linear outdoor ground lights

Linear outdoor ground lights

  • Lamp type :

    Led underground Lights
  • Product Model :

    CS-RX01
  • Chip Brand :

    CREE/EPISTAR
  • Dimensions :

    W90*H90*L600mm
  • Material :

    Aluminum Body+Tempered glass cover
  • IP rating :

    IP65
  • Warranty time :

    3 years
  • Product Details
  • Packing&Size

 Features
Environmental-friendly and energy saving.Environmental-friendly and energy saving.
High quality aluminum alloy + 304# stainless steel cover, good bearing capacity.
Anti-corrosion and durable.
Adopt 8mm tempering glass, excellent luminousness.
Easy installation.
Built-in constant current driver, long lifespan and stable performance.
Waterproof and dust proof.

 Applications

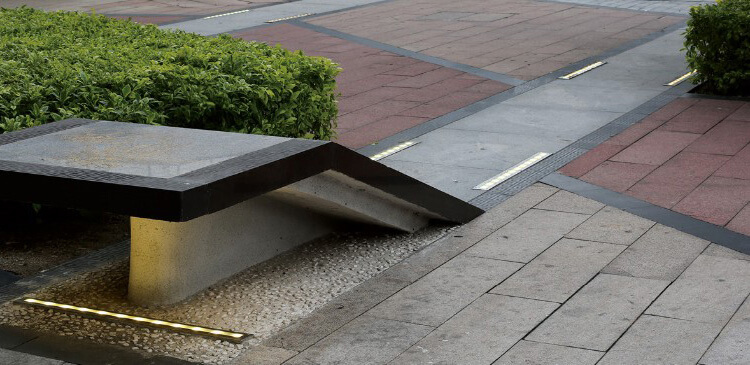

Perfect for outdoor lighting such as landscape, garden, square, etc


 Order Product Code

No.

ITEM NO.

LED QTY

Light Color

Voltage

Wattage

Dimensions

Embedded Size

Remarks

1

CS-RX01-A

6PCS

Single color

DC24V/AC220V

6W

W90*H90*L300mm

W80*H110*L285mm



2

CS-RX01-A-DMX

6PCS

RGB

DC24V

6W

W90*H90*L300mm

W80*H110*L285mm



3

CS-RX01-B

12PCS

Single color

DC24V/AC220V

12W

W90*H90*L500mm

W80*H110*L485mm



4

CS-RX01-B-DMX

12PCS

RGB

DC24V

12W

W90*H90*L500mm

W80*H110*L485mm



5

CS-RX01-C

15PCS

Single color

DC24V/AC220V

15W

W90*H90*L600mm

W80*H110*L585mm



6

CS-RX01-C-DMX

15PCS

RGB

DC24V

15W

W90*H90*L600mm

W80*H110*L585mm



7

CS-RX01-D

24PCS

Single color

DC24V/AC220V

24W

W90*H90*L1000mm

W80*H110*L985mm



8

CS-RX01-D-DMX

24PCS

RGB

DC24V

24W

W90*H90*L1000mm

W80*H110*L985mm

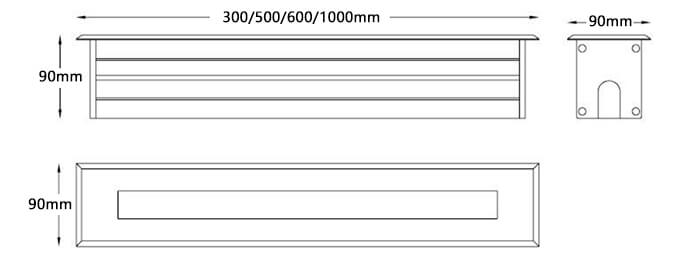

 Fixture Dimensions

RX01 Fixture Size

 Packaging Details:

No.

ITEM NO.

CTMS

Packing Size

Gross weight

Lighting length

Remarks

1

CS-RX01-A

8PCS

32*25*46CM

3.5KG

L=300mm



3

CS-RX01-B

6PCS

53*25*34CM

5.0KG

L=500mm



5

CS-RX01-C

6PCS

63*25*34CM

5.8KG

L=600mm



7

CS-RX01-D

4PCS

103.5*25*23CM

7.8KG

L=1000mm
