Lamp type :
Led Strip LightsProduct code :
SLC60-RGB-SSLED brand :
EpistarDimensions :
W13*H4*L5000mmMaterial :
FPCB+Silicone Casing CoverIP rating :
IP65Warranty :
2 years◆ Description
·Programmable RGB LED strip light, Built-in IC, single point single control，SM16703 IC Breakpoint resume
> Utra flexible, Easy to form a shap.
> Good quality FPCB board
> High brightness SMD5050 LED light source
> Safe to use: The tape lights work in DC5V/12V/24V low voltage
>Programmable, 60pcs leds per meter.You can cut by every 100MM if you need ( 6leds)
> 5 meters Per roll
SLC series LED flexible strips has 4 types products, SLC10-RGB and SLC20-RGB are external ICs, SLC30-RGB and SLC60-RGB are built-in ICs.

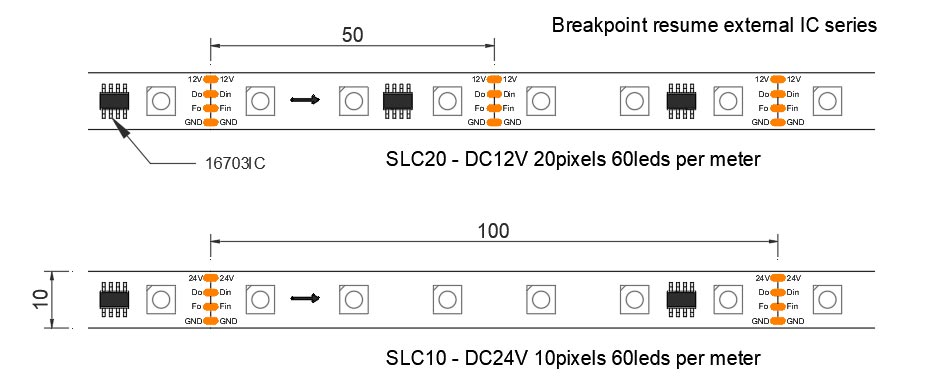

SLC10-RGB is 60LEDS per meter, 10 pixels, 6 LEDS per pixel, the working voltage is DC24V.
SLC20-RGB is 60LEDS per meter, 20 pixels, 3 LEDS per pixel, the working voltage is DC12V.

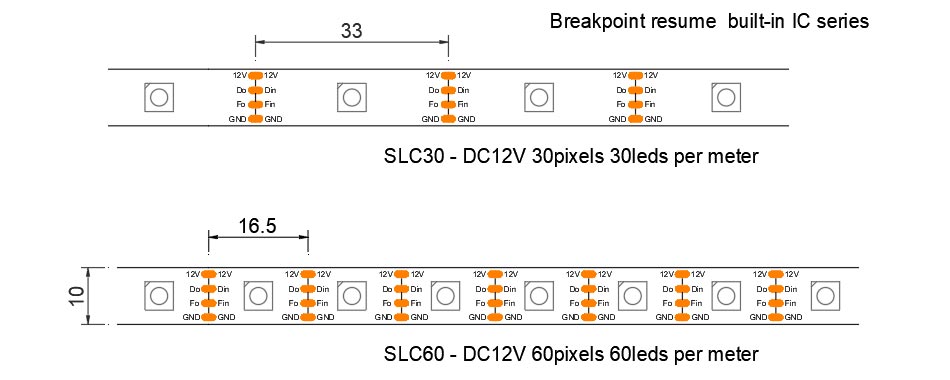

SLC30-RGB is 30LEDS per meter, 30 pixels, 1 LED per pixel, there are two working voltages: DC5V and DC12V.
SLC60-RGB is 60LEDS per meter, 60 pixels, 1 LED per pixel, there are two working voltages: DC5V and DC12V.
This series of light strips are divided into waterproof models and indoor models.
The indoor model is a naked FPCB, and the protection level is: IP20.
The outdoor model is waterproof with silicone casing, protection grade: IP65.

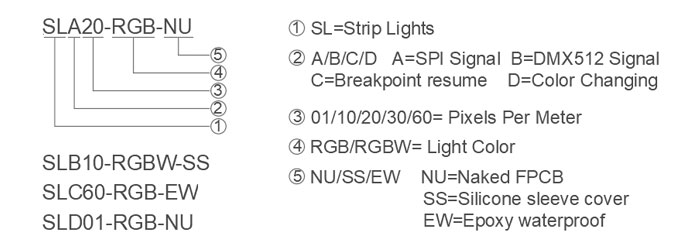

◆ Order Product Code
|
No. |
ITEM NO. |
LED QTY |
LED TYPE |
Light Color |
Voltage |
Wattage |
Control |
Pixels/Meter |
Remarks |
|
1 |
SLC10-RGB-NU |
60PCS |
5050SMD 3in1 |
RGB |
DC24V |
12W |
SPI |
10 pixels |
|
|
2 |
SLC20-RGB-NU |
60PCS |
5050SMD 4in1 |
RGB |
DC12V |
12W |
SPI |
20 pixels |
|
|
3 |
SLC30-RGB-NU |
30PCS |
5050SMD 3in1 |
RGB |
DC5V/12V |
7W |
SPI |
30 pixels |
Built-in IC |
|
4 |
SLC60-RGB-NU |
60PCS |
5050SMD 3in1 |
RGB |
DC5V/12V |
12W |
SPI |
60 pixels |
Built-in IC |
|
5 |
SLC10-RGB-SS |
60PCS |
5050SMD 3in1 |
RGB |
DC24V |
12W |
SPI |
10 pixels |
|
|
6 |
SLC20-RGB-SS |
60PCS |
5050SMD 4in1 |
RGB |
DC12V |
12W |
SPI |
20 pixels |
|
|
7 |
SLC30-RGB-SS |
30PCS |
5050SMD 3in1 |
RGB |
DC5V/12V |
7W |
SPI |
30 pixels |
Built-in IC |
|
8 |
SLC60-RGB-SS |
60PCS |
5050SMD 3in1 |
RGB |
DC5V/12V |
12W |
SPI |
60 pixels |
Built-in IC |
