DMX Address Writer XB C100 DMX Encoder

I.  FEATURES

1. Xb-c100 code writer: large display panel, easy to operate and rich display.

2. Xb-c100 coder supports operating system upgrade.

3. Xb-c100 code writer has built-in battery, which can work continuously for 10 hours.

4. Xb-c100 coder supports mainstream DMX512 chip, and can write code and write parameters to dmx512ic.

5. Xb-c100 code writer can test dmx512ic lamp channel address and test effect.

6. Xb-c100 coder port outputs enhanced TTL and 485 differential signal, which can carry TTL / DMX512 lamps.

7. The xb-c100 coder can carry 512 / 2048 pixels at most (the maximum 512 pixels of the X-ray lamps take three channels as an example).

8. Xb-c100 coder 22 built-in test effect (optional 3-channel / 4-channel built-in effect).

9. Xb-c100 coder can be inserted into SD card to play the effect (software effect output is selected as k-1000), which is the same as that of k-1000c controller.

II. SPECIFIC PARAMETERS

Operating temperature: -20℃ -- 85℃

Class: SD card   Capacity: 128MB -- 32GB

Power supply: DC 5V-24V input (built-in battery)

Battery capacity: 4000mAh    format: FAT or FAT32 format

Power consumption: 4W       File storage: *. Led

Data transfer port: 4PIN terminal

Weight: 0.65 Kg

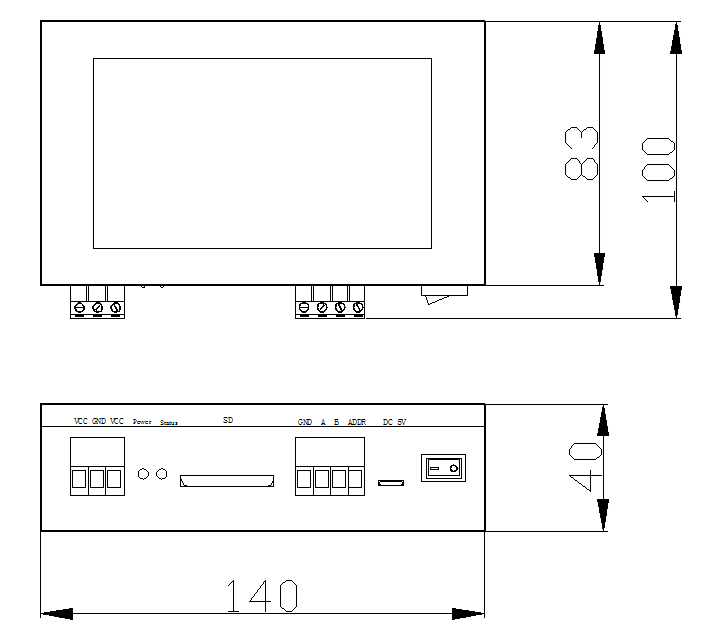

Dimensions: L140mm * W100mm * H40mm
