Lamp type :
Contour lightsProduct model :
CS-DL5042Chip brand :
CREE/EpistarDimensions :
W50*42*L1000mmMaterial :
Aluminum Housing+PC CoverIP rating :
IP65Warranty :
3 years◆ Description
· LED digital tube lights outdoor apply to facade lighting, Landscape lighting and architectural lighting;
· Material: Aluminum alloy housing, PC cover(Translucent or Milky available for selection).
· Contour LED lighting for architecture outline is a direct view linear LED fixture ideally suited for creating long ribbons of color and color-changing effects. Can change all kinds of colors And produce gradients, flicker, scanning, chasing, running water and other effects.
· Monochromatic light can be selected with 1800~6500K , red light, blue light and green light.
◆ Specifications
|
Optical |
Lighting Source：SMD5050 3in1 led |
Chip Brand：Epistart、CREE |
|
LED Quantity：48 PCS |
Beam Angle：160° |
|
|
Emitting Color：RGB |
Led life：>30000 hours |
|
|
Segments：8 pixels per meter |
Waterproofing Methods:PU Sealant |
|
|
Electrical |
Working Voltage：DC24V |
Electric Wire：Five-core Plug |
|
Rated Power：12W |
Electrical Class：III |
|
|
Construction |
Shell Material：Aluminum Housing |
Cover：Translucent PC Cover |
|
Dimensions：W50*H42*L1000mm |
Clips：Aluminum alloy |
|
|
Control |
Light Control：DMX512 |
Gray level:256x256x256 |
|
Other |
Ambient Temperature：-20°~+55° |
IP rating：IP65 |

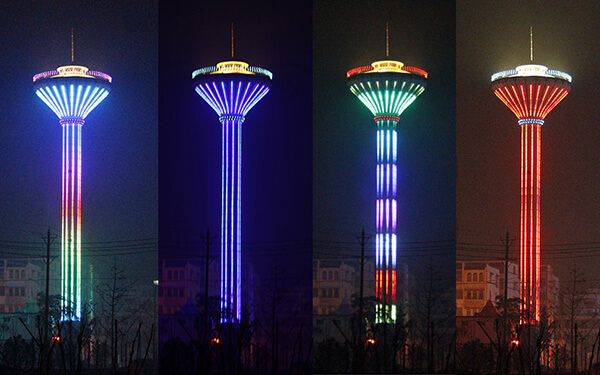

◆ Applications
◆ Order Product Code
| No. | ITEM NO | LED QTY | Light Color | Voltage | Wattage | Control | Pixels/Meter | Remarks |
| 1 | CS-DL5042-D8 | 48PCS-5050SMD 3in1 | RGB | DC24V | 12W | DMX512 | 8 Pixels | 5-core Plug |
| 2 | CS-DL5042-48Q | 48PCS-5050SMD | Single Color | DC24V | 11W | N/A | ------ | 5-core Plug |
| 3 | CS-DL5042-60Q | 60PCS-5050SMD | Single Color | DC24V | 13W | N/A | ------ | 2-core Plug |
