LED street light style 02

Item No

CS-ST02-50W

CS-ST02-100W

CS-ST02-150W

CS-ST02-200W

CS-ST02-250W

CS-ST02-300W

Dimension L*W*H(mm)

446*310*75MM

522*310*75MM

598*310*75MM

674*310*75MM

750*310*75MM

830*310*75MM

Installation Height

5-6M

7-8M

8-10M

10-12M

12M

12-15M

Luminous flux

5500LM

11000LM

16500LM

22000LM

27500LM

33000LM

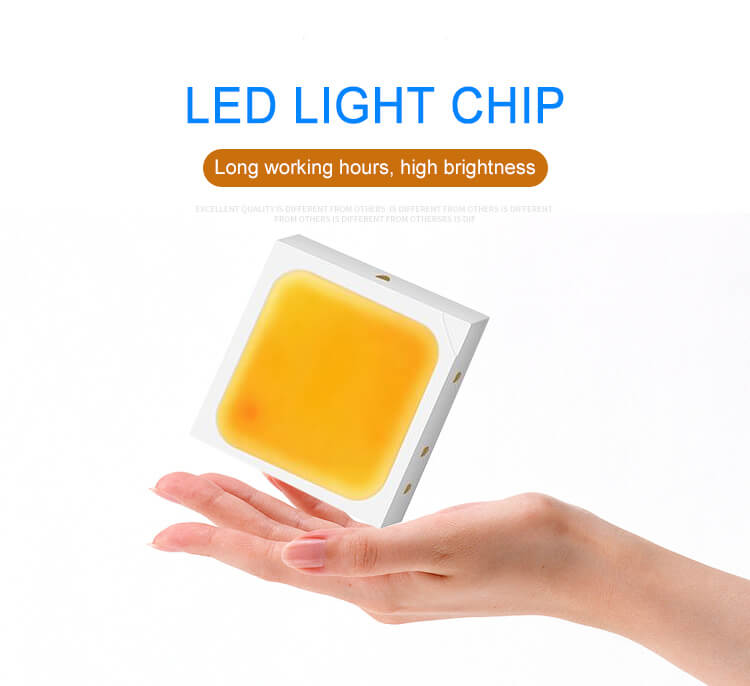

LED Type

SMD3030

SMD3030

SMD3030

SMD3030

SMD3030

SMD3030

LEDs qty

50pcs

100pcs

150pcs

200pcs

250pcs

300pcs

Material

Aluminum

Aluminum

Aluminum

Aluminum

Aluminum

Aluminum

Install pole diameter

60mm

60mm

60mm

60mm

60mm

60mm

Beam angle

70*140°

70*140°

70*140°

70*140°

70*140°

70*140°

Power factor

>0.98

>0.98

>0.98

>0.98

>0.98

>0.98

CRI

>80

>80

>80

>80

>80

>80

Lifetime

50000hrs

50000hrs

50000hrs

50000hrs

50000hrs

50000hrs

Waterproof

IP65

IP65

IP65

IP65

IP65

IP65

Color

3000-6000K

3000-6000K

3000-6000K

3000-6000K

3000-6000K

3000-6000K

Warranty

3years

3years

3years

3years

3years

3years

Packing QTY

1PCS

1PCS

1PCS

1PCS

1PCS

1PCS

Packing Size

606*350*135mm

682*340*135mm

758*340*135mm

834*370*135mm

910*340*135mm

990*340*135mm
