Light Type :
Led pixel LightsProdcut Code :
CS-PX07Chip Brand :
CREE/ EPISTARDimension :
ф39xH15.2 mmMaterial :
ABS Body+ PC coverRated Power :
1.2WLight Color :
RGBRated voltage :
24V DCProtection level :
IP65Warranty time :
2-3yearsRGB Pixel Light, Point Dot Module RGBW for LED Facade Lighting
◆ Description:
1. Ferris Wheel, Merry-Go-Round, Pirate Ship, Pendulum, Bumper Car, Rotor etc amusement rides, castles, carnival, funfair ground, attractions lighting.
2. Logo, signage, exposed luminous characters, channel letters, advertisement billboard.
3.Stage, nightclub, pub, KTV entertainment, Bars, Discos, building decorative lighting, bridge edge decoration Building contour,large shopping malls outside wall, Hotel, square street, outdoor AD signs, Logo and other places.
4. Display screen, painted screen, led light project, light engineer etc.

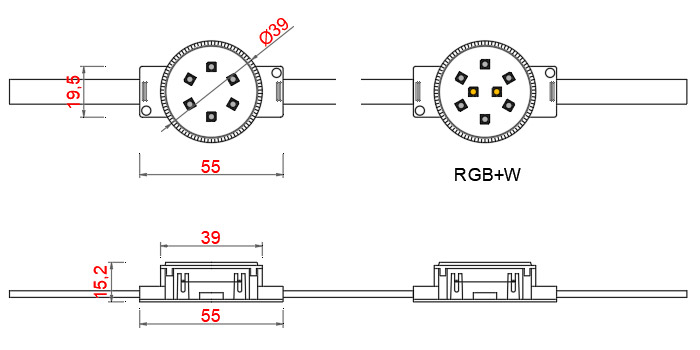

◆ Dimensions:

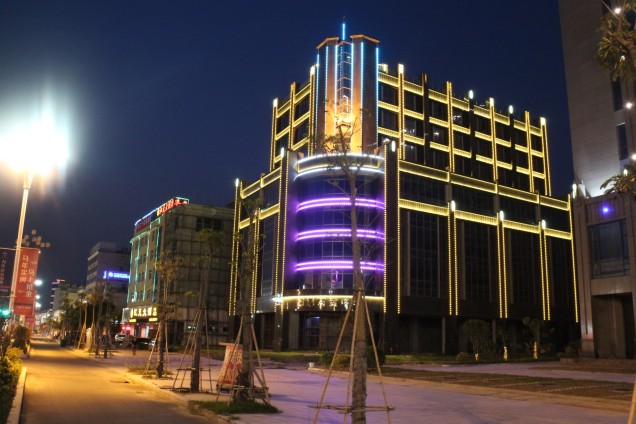

◆ Application:
◆ Order Product Code
No. |
ITEM NO |
LED QTY |
LED TYPE |
Light Color |
Voltage |
Wattage |
Control |
Remarks |
1 |
CS-PX07-DMX3 |
6PCS |
3535SMD |
RGB |
DC12V |
1.2W |
DMX512 |
5-PIN plug |
2 |
CS-PX07-DMX4 |
8PCS |
3535SMD |
RGB+W |
DC24V |
1.6W |
DMX512 |
5-PIN Plug |
3 |
CS-PX07-XX |
6PCS |
3535SMD |
1800~6500K |
DC24V |
1.2W |
On/Off |
2-PIN plug |
Remarks:
CS-PX07-XX XX: Yellow(1800K-2000K), CW(6200K-6500K), W (4000K-4500K), WW(2700K-3000K), Green, Red, Blue.
