Model :
CS-MDS006Power :
60WMaterial :
Aluminum+PCIP Rating :
IP65Lamp size :
W70*L300*H47mmLed Type :
SMD3030Warranty :
3 years
Waterproof LED module / LED street light kits is a series of product of components for LED street light, led canopy light LED tunnel light , the module is designed with waterproof rate, can be assembled for industrial led fixtures, high lumen output .
Product Features:
1. The waterproof LED module can be widely used for all kinds of LED industrial fixtures .
LED street light ,led flood light ,led tunnel light , LED canopy light ,LED high bays
2. Cree/Philips Chip are optional
3. excellent light output ; 120lm-140lm/Watt
4. Waterproof IP65
5. 6063 Aluminum housing
6. 3 years warranty
|
LED Brand |
CREE / Philips |
|
Power Output Voltage |
DC30-33V |
|
Module Quantity |
1pcs |
|
LED Quantity |
60PCS |
|
Power Consumption of Lamp System |
60W |
|
Luminous Efficiency of Whole Lamp |
120 Lm/W |
|
LED Normal Luminous Flux |
7200Lm |
|
LED Extraction Efficiency |
＞90% |
|
Related Color Temperature |
3000K / 4000K / 5000K / 6000K |
|
CRI |
Ra＞70 |
|
Light distribution curve or spots |
Light interception /Half Light |
|
Average Beam Angle |
C0/180°: 140°, C90/270°: 70° |
|
Working Temperature |
-40 ℃ ~ 45 ℃ |
|
Working Humidity |
10 % ~ 90 % RH |
|
Storage Temperature |
-40 ℃ ~ 60 ℃ |
|
Warranty |
3 years |
|
Lamp Body Material |
Aluminium+PC |
|
IP Rating |
IP65 |
|

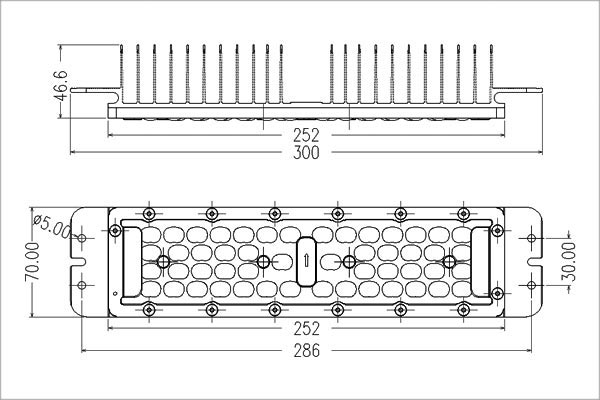

Lamp Dimension |
70×300×47mm |
