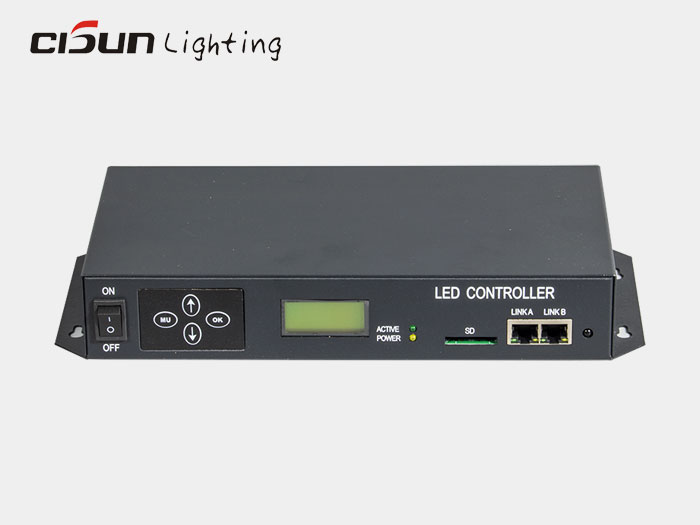

YT SD50 led main controller

This controller must be used with the SS-series sub- controller, Support easy player programming.

Product model :
YT-SD50
Output port :
Link A/Link B
Protocol :
DMX512 or PWM
Control mode :
Host controller

Contact Now

Product Details
Packing&Size

1. Offline master control, SD card storage, standard 4G, maximum support 32G, with SS-S950/980 SUB controller to achieve offline control, the maximum control point is 120,000 points
2. External infrared remote control, selectable clip, brightness, speed, red, green and blue test effect, write address code
3. Support timed playback, up to 255 clips (holiday, week, month, day, hour, etc.)

4. Cooperate with DMX-TCP converter to realize the optional broadcast of offline files by DMX console

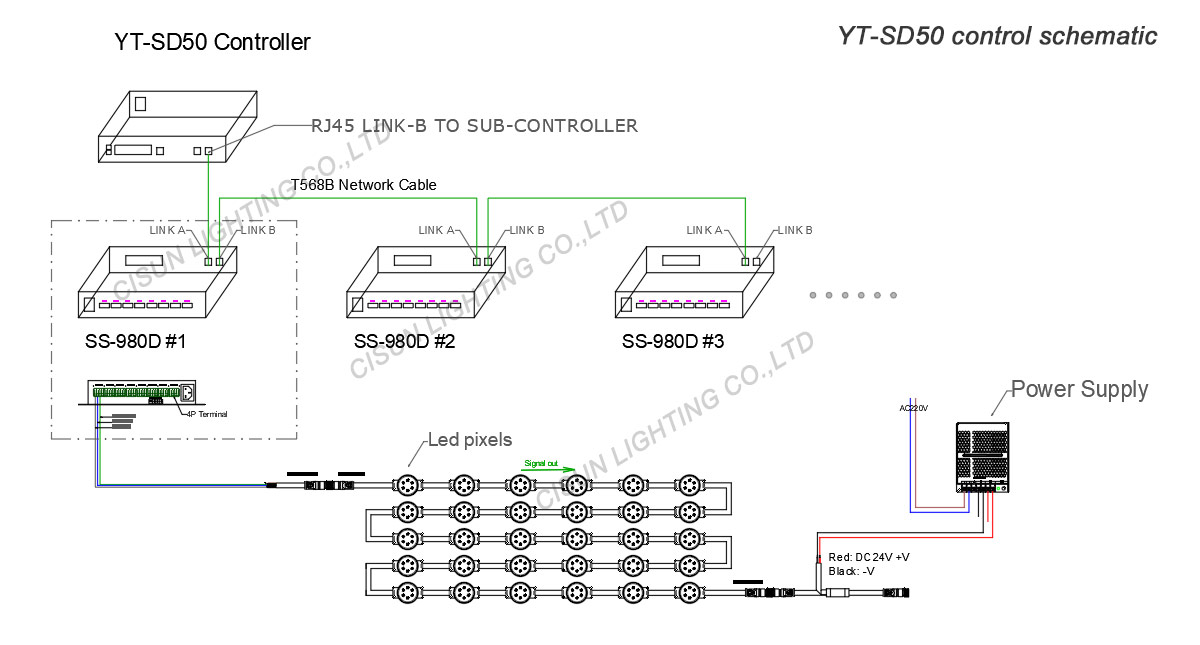

YT-SD50 Control Schematic

◆ Order Product Code

No.

Model No.

Power

Voltage

Protocol

Applicable IC model

Control Mode

YT-SD30

15W

AC220V

SPI / DMX512

UCS1903, UCS1912,WS2811,SM16703,TM1804, etc

UCS512,SM512,TM512,etc

GPS

Main Controller

YT-SD50

15W

AC220V

SPI / DMX512

UCS1903, UCS1912,WS2811,SM16703,TM1804, etc

UCS512,SM512,TM512,etc

Offline

Main Controller

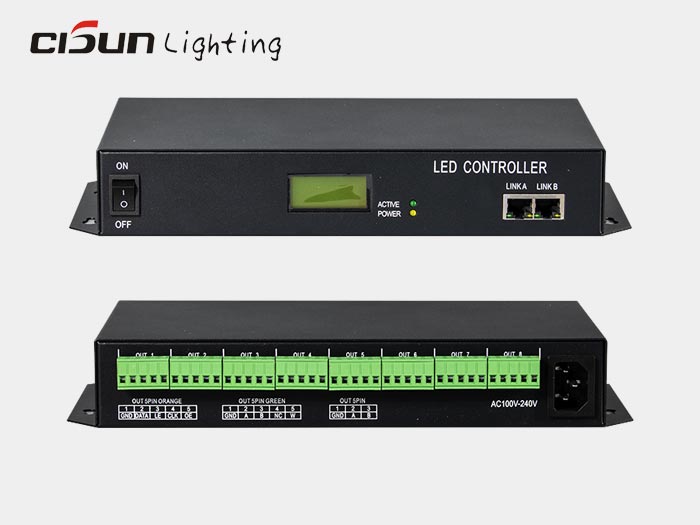

Matching SUB-Controller

No.	Model No.	Power	Voltage	Protocol	Applicable IC model	Control Mode
1	SS-980A	15W	AC220V	SPI	UCS1903, UCS1912,WS2811,SM16703,TM1804,etc	SUB-Controller
2	SS-980DW	15W	AC220V	DMX512 / SPI	UCS512,SM512,TM512,etc UCS1903, UCS1912,WS2811,SM16703,TM1804,etc	SUB-Controller
3	SS-980E	15W	AC220V	SPI / DMX512	UCS1903, UCS1912,WS2811,SM16703,TM1804, etc UCS512,SM512,TM512,etc	SUB-Controller
4	SS-880E	15W	AC220V	SPI / DMX512	UCS1903, UCS1912,WS2811,SM16703,TM1804, etc UCS512,SM512,TM512,etc	SUB-Controller

◆ Related products

MR-228 SUB Controller MR-3F12B Main Controller

◆ Packaging Details: 1PC in 1 box

dmx512 led controller box size

◆ Box Size: 28 x 24 x 5.5 CM

◆ Package weight: 1.5 KG

◆ Packaging Size: L50 x W29 x H26CM

◆ Packaging QTY: 9PCS per Carton

◆ Packaging Materials: Carton

◆ Delivery Time Shipped in 5 days after payment
